Monday 3 September 2007

VSeWSS 1.1. CTP - a look at the nuts and bolts

Regular readers of this blog will know that I've been a reasonably keen advocate of Microsoft's Visual Studio Extensions for Windows SharePoint Services (VSeWSS) for certain SharePoint development tasks. If you read more than a couple of SharePoint blogs, you won't have avoided the news that MS have just released version 1.1 of this tool, as announced here by Alex Malek over on the SharePoint Designer blog. At the time of writing, this is a CTP (Community Technology Preview) meaning it is pre-beta, so bugs can be expected. So today I wanted to run through the changes, so folks who aren't familiar with the tool or haven't had a chance to take a look themselves can quickly get a sense of what's in there.

In essence, VSeWSS helps by simplifying the process of developing Features for SharePoint - this approach is generally regarded as the way to do SharePoint development in such a way that assets can be more easily deployed to other environments. In previous articles, I detailed how to create and deploy lists and how to create and deploy web parts with VSeWSS. For me, these are probably the scenarios where VSeWSS comes in the most useful, though there definitely are others depending on how you work. However, the most common gripe of developers who used the tool was that since VSeWSS 1.0 regenerated Feature files with each change, it wasn't possible to manually amend the files. This was often necessary to add things not directly supported by the tool, such as Feature receivers.

So let's run through the different areas where the tool has been improved.

WSP View

The big change with this release is that it is now possible to amend Feature files in the development process. Instead of hiding the generation of these files behind the scenes, the tool now makes these bona fide VS project items which can be edited before the Solution package is built. Certainly auto-generation of the final files still happens (that's the point) and there are some files lurking which are needed to support the tool, but VSeWSS now does a good job in presenting to you what you can modify through the WSP View (View > Other windows > WSP View). This is shown below for a project with some different artifacts:

Some nice things which can be done here are that entire Features can be deleted with a single click (all files will be removed), and the Feature activation order can be changed. Toolbar buttons are provided which modify the sequence of FeatureManifest elements in the manifest.xml file.

Feature file editing

So the WSP View provides the mask onto the editable files, but I wanted to drill into why this is useful. Some examples would be:

  • ability to add Feature receivers to a particular Feature
  • ability to rename properties of the Solution package, e.g. to bring VSeWSS-generated Solutions into line with a naming convention
  • ability to refactor Feature elements into a single Feature. This can be useful because by default the tool will create a new Feature each time you use Project > Add new item > Some SharePoint item (e.g. Content type). Often you will want several Feature elements to comprise a single Feature rather than split over several Features.

Event receivers

VSeWSS 1.1 also provides some enhancements around event receivers (handlers for events raised by lists). Version 1.0 also provided some support in this area, but the main scenario was adding a list/item receiver at the time the list was being created (i.e. "create list with receiver"). Version 1.1 now makes it easy to add an event receiver to an existing list, which simplifies those scenarios.

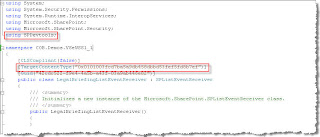

My favorite improvement in this area however, has to go to event receivers on content types. This effectively means that the event-handler code travels with the content type - so your code will run on all lists the content type is associated with. This is interesting as I had no idea this was possible in the WSS 3.0 platform! So I did some digging. I haven't yet done any testing of the results, but what VSeWSS does to support this is add some custom attributes to a standard list event receiver. For those interested, these are defined in the SPDevTools namespace in a file which is added to your project (out of the way in the Properties folder, alongside AssemblyInfo.cs) by the tool. I've not yet worked out exactly what picks up these flags in the Feature activation process, but it's clear that standard list event receivers are actually being used as the generated class derives from SPListEventReceiver. The image below (click to enlarge) highlights the new attribute being applied which supports all this:

Web parts

This was where I thought VSeWSS was a winner, and it's good to see the support for web part deployment has been extended further still. With 1.1, a default web part definition file (.webpart) is now generated for you to edit before deployment to add custom property settings. This is useful, since it means that developers can avoid the "deploy web part, add to page, configure, export web part" process which is otherwise required to obtain a configured definition.


One of the first things VSeWSS 1.0 users will notice is that a full IISReset is no longer performed on each deployment. This was something of a pain with version 1.0, since it meant the "edit, deploy, get feedback" cycle took longer than was necessary. So having been used to the IISResets, personally I was pretty pleased to see the message below in the Visual Studio status bar during the first deployment!

What could be better

So those are the good bits, and it's a great step in the right direction. However I'd still like to see the following:

  • fully-featured Solution Generator. I didn't have time to look at this in detail, but the download page specifies that certain items still aren't covered. This ties in with what I remember Alex Malek saying at this year's Tech Ed, that this still wouldn't be "full fidelity".
  • ability to easily add a Feature receiver to a Feature I'm working with. I just want right-click > Add Receiver - this should generate the class and add the attributes to the Feature definition with default values, or perhaps infer the generated type.
  • ability to easily refactor Feature elements in Features, since I often don't want the default of a Feature per element
  • no GUIDs in Feature names (though apparently this will be sorted by final release)
  • ability to deploy a _layouts file (again, this should be there in final release)

On a "bigger picture" note, I'm reminded of a common view in the SharePoint community which made complete sense when I heard it first from Ted Pattison. Unlike .Net, where Microsoft has gone to great lengths to ensure the tools are in sync with the platform (same team [Scott Guthrie], same timeframe for development phase, same ship date), a different thing is happening with SharePoint. Effectively the tools are 18 months behind the platform, so SharePoint development can be pretty painful at the moment -  however, this shouldn't be taken as a reflection of the platform.

This release of VSeWSS should help though, and it'll be interesting to see what comes in the future.

The download link is
